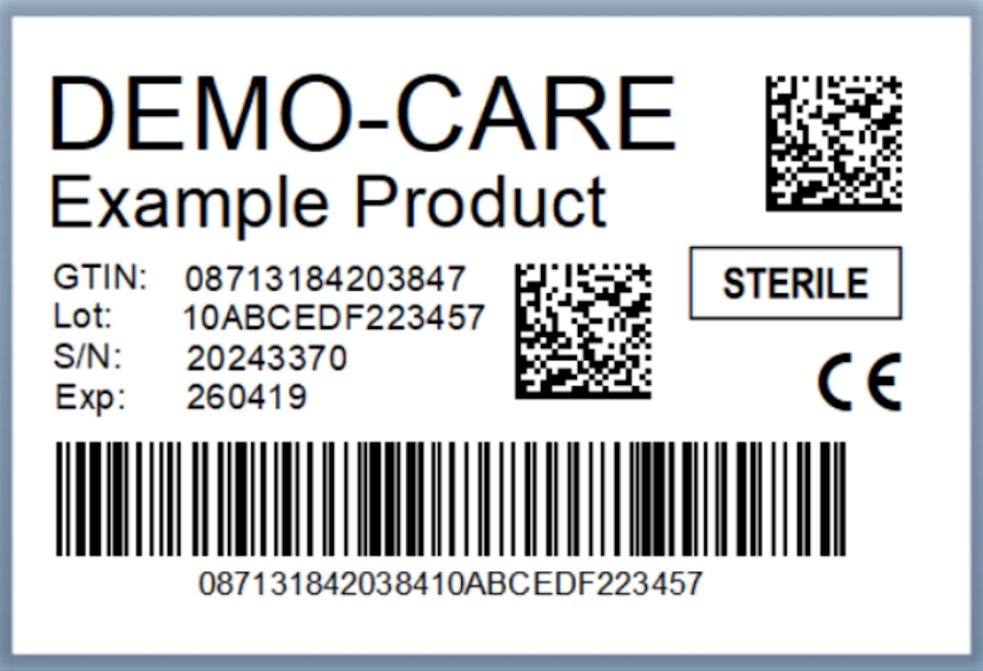

Demo-Care medical device label example

Inspection requirements

• White paper label media

• 5.5pt font

• Check Code verification

• Check GS1 validation

• Check GS1 Linked Fields

• Check Serialization

---

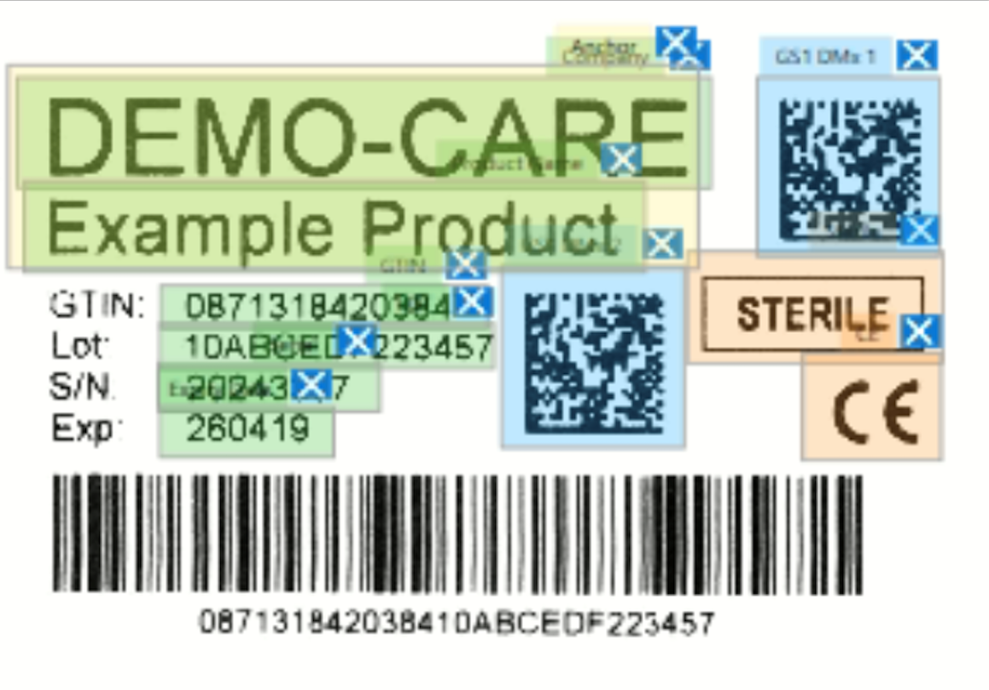

Vision template layout

---

Label and media details

• Label size: 35mm x 50mm

• Label color: white

• Label media: diecut

• Ribbon: DURO 5 Wax

• Light wavelength: 630nm Red

• Printer: Zebra ZT610

• Print speed: 2ips/50mm per second

• Printer DPI: 600dpi

Resources to download

Batch reconciliation report - white label media with GS1 Linked Fields

Bartender design file - white label media e.g medical device (downloads “Demo-Care.btw”)
